Arsenal Salyut1957

History

Arsenal's modular medium format program was initiated in the early-to-mid 1950s under the broader Soviet effort to develop domestic alternatives to Western photographic equipment. The Hasselblad 1600F (introduced 1948) and 1000F (1952) had established the modular 6x6 SLR as the professional medium format standard. Soviet industrial planning tasked the Arsenal factory in Kyiv - already producing optical equipment and the Kiev rangefinder line - with developing a comparable system.

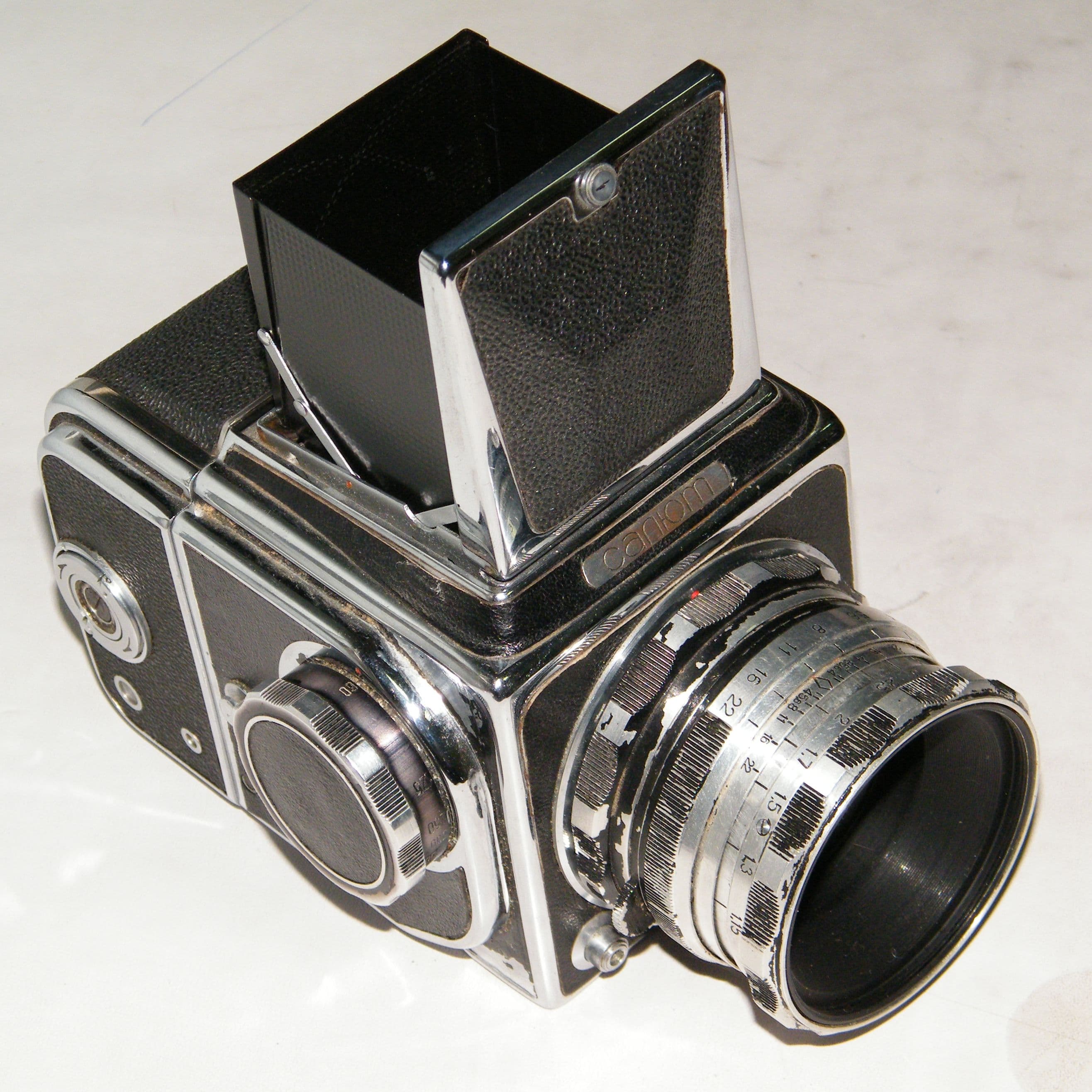

The original Salyut entered production around 1957. Its architecture closely mirrors the Hasselblad approach: a central body housing the shutter mechanism, with a bayonet at the rear accepting interchangeable film backs and a bayonet at the front accepting interchangeable lenses. The waist-level finder was standard; a pentaprism eye-level finder was offered as an accessory.

The Salyut was manufactured until approximately 1972, when it was succeeded by the refined Salyut-S. The Salyut-S then gave way to the Kiev-88 around 1980. The Salyut bayonet mount carried through the entire lineage; original Salyut lenses mount on Kiev-88 bodies and vice versa, giving the platform one of the longer mount compatibility histories in Soviet camera production.

Why It Matters

The Arsenal Salyut is historically significant as the first Soviet medium format modular SLR - the camera that established a platform which remained in continuous production in evolved form for over three decades. It demonstrated that the Soviet optical industry could produce a functionally equivalent architecture to the Hasselblad system, if not at the same level of manufacturing precision.

The Salyut introduced what became the Salyut/Kiev-88 mount, providing Soviet photographers access to a native lens system including wide-angle, standard, and telephoto optics. For the Soviet professional photographic community - press photographers, studio workers, and scientific documentation teams for whom Hasselblad equipment was inaccessible due to foreign currency restrictions and import controls - the Salyut represented the only domestically available professional medium format system for nearly two decades.

Today the original Salyut is the rarest and most historically interesting body in the Arsenal medium format lineage. Working examples that have been properly serviced can still expose 120 film, and the bayonet lens compatibility with later Kiev-88 glass means users are not limited to original Salyut-era optics.

Lenses & Accessories

Mount: Salyut bayonet, compatible with all subsequent Salyut-S and Kiev-88 mount lenses.

Lenses available for the Salyut platform:

• Industar-29 75mm f/3.5 - standard kit lens on original Salyut bodies; Tessar-type design, adequate performance, compact
• Vega-12B 90mm f/2.8 - later standard-range option introduced with the Salyut-S / Kiev-88 era; sharper performance
• Mir-26B 45mm f/3.5 - wide-angle; Flektogon-influenced design
• Arsenal / Kaleinar-3B 150mm f/5.6 - short telephoto for portraiture
• Arsat-H 80mm f/2.8 - later Arsenal standard lens; available for this mount but produced after original Salyut production ended
• Zodiak-8B 30mm f/3.5 - fisheye; a distinctive optic for the system

Viewfinders: Waist-level finder (standard); pentaprism eye-level finder available as accessory.

Film backs: 6x6 120-format backs. The Salyut back system is the direct ancestor of the Kiev-88 back; later Kiev-88 backs are compatible with Salyut bodies with minor variation.

Sample Photographers / Notable Use

• Soviet professional photographers and scientific/press documentation teams who required medium format capability within the Soviet supply chain.
• Used across Soviet scientific institutes, press agencies (TASS, APN), and professional photo studios in the late 1950s through 1960s.
